Product Features

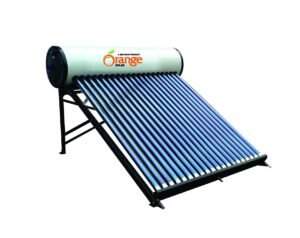

High borosilicate twin glass tube of inner and outer assembly
Inner glass tube coated with special selective three layer coating
Fast thermal collection efficiency
TIG/Seam/Plasma/Co2/welded Stainless steel/GI storage tank/ceramic coated tanks
Protection of storage tank from cossosion using ceramic/pure epoxy coating
Technical specifications
Absorber Coating: Selective Coating Absorptivity0.96±0.02
Riser Pipe: Copper 12.5mm Q 24 SWG(±0.05mm)
Header Pipe: Copper 25mm Q22SWG(±0.05mm)
Bonding b/w Riser Header: Brazing
Bonding b/w Riser Header & Absorber Street : Continuous ultrasonic welding
Front Glazzing: Toughened Clear/Frosted Glass
Backside Insulation: Rockwool
Gasket : EPDM Rubber
Collecter Box: Extruded Alluminium Channels
Header Jackets: Brass FlangesAssembly
Storage Tank
Storage Tank(Inside) : SS 304 Grade/GI/Enamel coated/PE Coated
Installation: Rockwool/Min/PUF
Tank ourter cladding: Polyster grade powder coated sheet/stainless steel
Inter connection pipes: Stainless steel 304 garde/Gz
Storage tank stand: Mild steel
Electrical back-up: 2kw thermostat controlled varies according to size of the storage tank
Sacrificial Anode: To avoide glavanic corrosion
Hose Pipe: 25/35 EPDM Rubber
